RTR JX E20 RC Mini Excavator 1/14 Scale Hydraulic Sounds Light JXMODEL Remote Control Metal Digger Model Painted Toy Toucanhobby

Note: Six options are available to be purchased as description at ad.  We’ll ship according to your selection. Please contact us to if there’s any question.

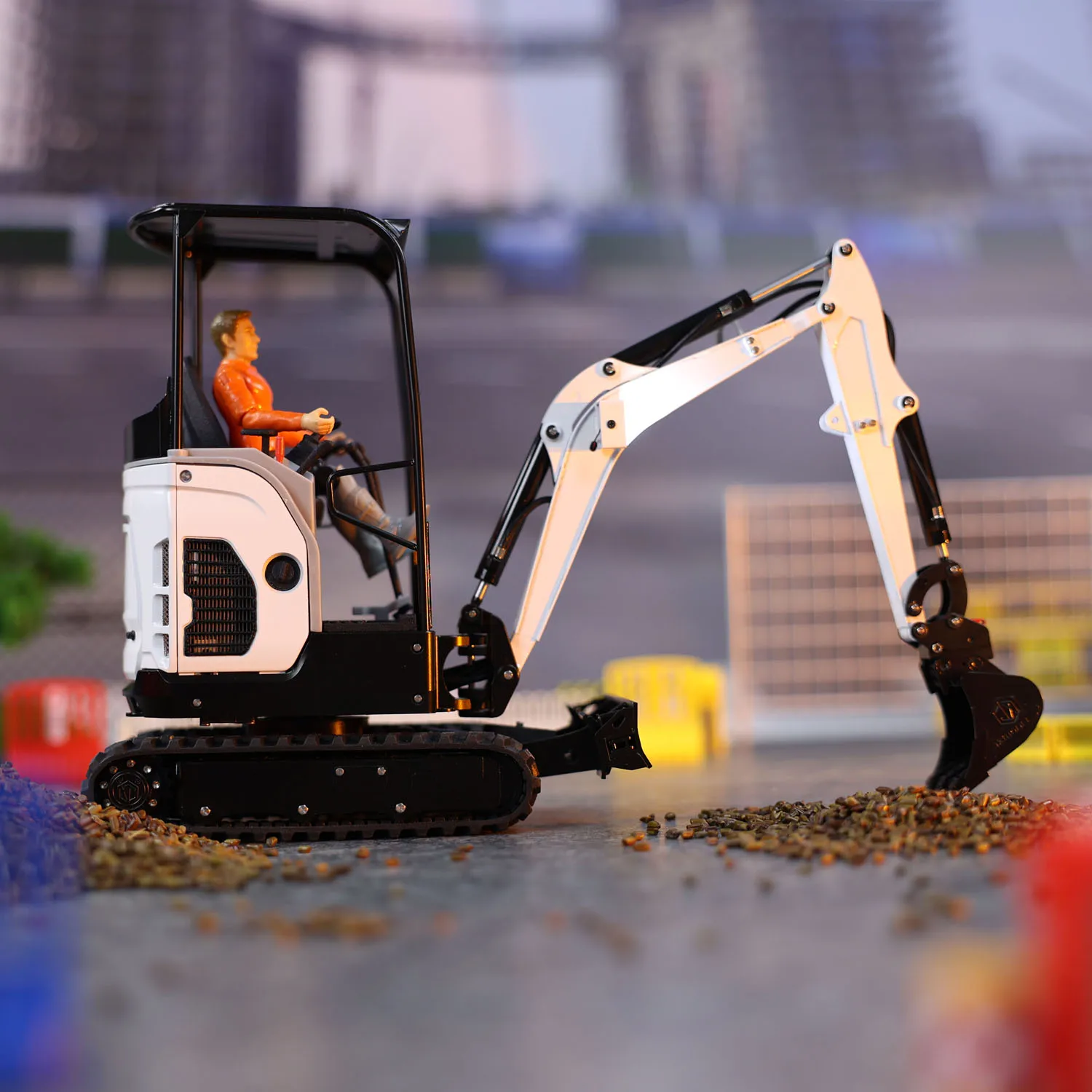

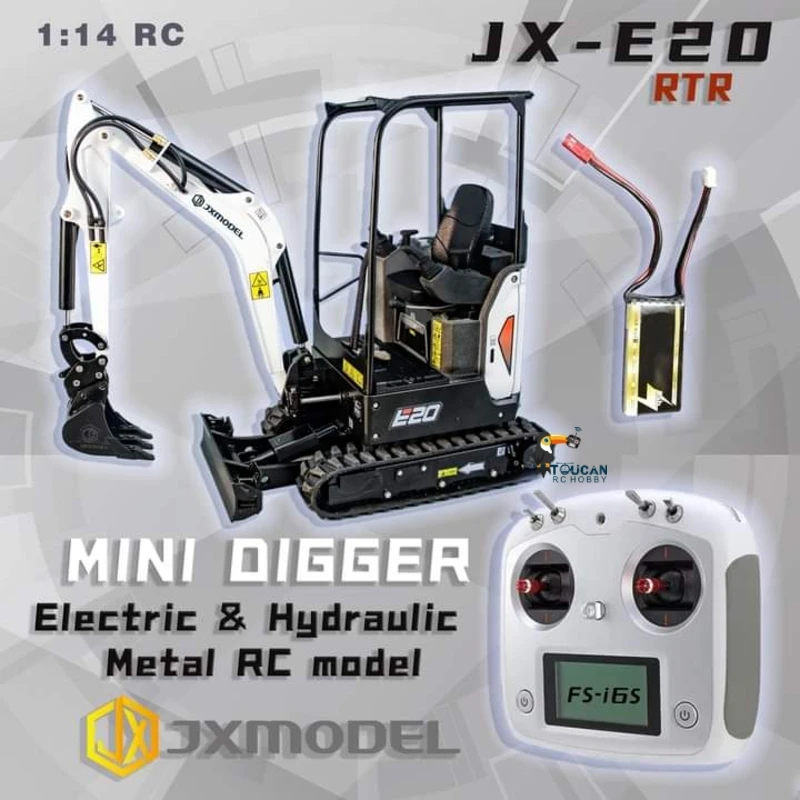

※JX Model 1/14 E20 RC Hydraulic Excavator Mini Remote Control Digger Sounds Light

※Specification:

Manufacturer: JXModel

Item Condition: New, Assembled and Painted

Scale: 1/14

Material: Metal, Plastic

Vehicle Size: About 204*192*73mm

Net Weight: About 1.1KG

ID: JXM-E20-Excavator-RTR-WBK

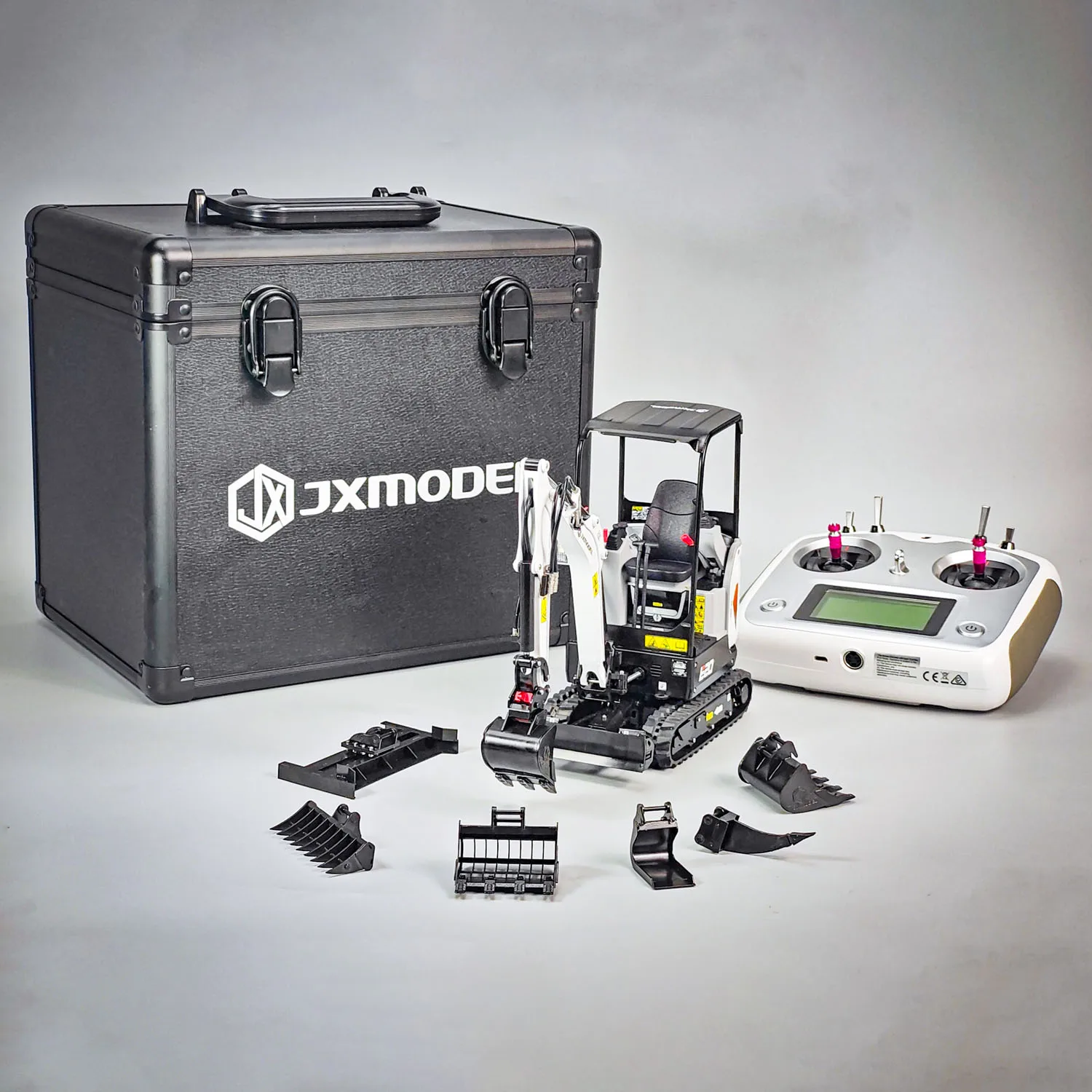

※The Package Includes:

1/14 RC Excavator Model

Motor

Servo

ESC

Hydraulic System with a 4-way Reversing Valve

Lights

Sound System

FlySky I6S Remote Controller and Receiver

Battery

※The Package Does Not Include:

Light System

Charger

Hydraulic Oil

#Static Technical Parameters:

– Cab top height above ground/mm: 171

– Platform bottom height above ground/mm: 32

– Total track length/mm: 121

– Wheelbase (center distance between drive wheel and guide wheel)/mm: 93

– Single track width/mm: 17

– Total width with front/rear two tracks extended/mm: 73-99

– Maximum extension length of the entire machine/mm: 429

– Total width of the entire machine with extended push shovel front/rear/mm: 73-101

– Chassis length (from track to front shovel)/mm: 154

– Shovel working face height/mm: 18

#Dynamic Technical Parameters:

– Maximum rotation angle of the shovel/°: 23

– Maximum track lift angle when the shovel is raised/°: 5

– Minimum turning radius during operation/mm: 145

– Maximum turning radius during operation/mm: 334

– Maximum digging height/mm: 279

– Maximum digging depth/mm: -170

– Maximum rotation angle/°: 360+ (infinite rotation)

– Main arm horizontal rotation angle/°: Left 34 – Right 57

– Platform rotation speed (r/min): 36

– Platform rotation motor reduction ratio: 1:546

– Walking drive wheel track (r/min): 30

– Walking drive motor reduction ratio: 1:603

– Maximum pressure of hydraulic workstation/mpa: 2

– Rated pressure of hydraulic workstation/mpa: 1.5

#Features:

1. Premium Alloy Construction:

– The entire main body is crafted from high-quality alloy using CNC machining or stainless steel sheet metal.

– Other components utilize engineering plastics and rubber for durability.

2. Compact and Powerful Design:

– Remarkably miniaturized, the excavator features an integrated setup with 4-channel valves comes with upgraded 8.4V servos, an oil pump, , radiator cooling fan, hydraulic tank, battery, integrated motherboard, and a sound system with speakers.

3. Portable and Fully Functional:

– With its miniature dimensions, the excavator offers a complete range of functionalities.

– Convenient to carry around, it provides desktop-level enjoyment wherever you go.

4. Expandable Features:

– Designed with reserved interfaces for quick attachment of additional tools and electric accessories.

– Ongoing releases of compatible attachments for continuous customization.

5. Customized Integrated Motherboard:

– Highly integrated custom motherboard equipped with illuminating searchlights for enhanced visual appeal.

6. Quick Manual Detachment:

– Features a manual quick-detach mechanism for efficient and user-friendly operation.

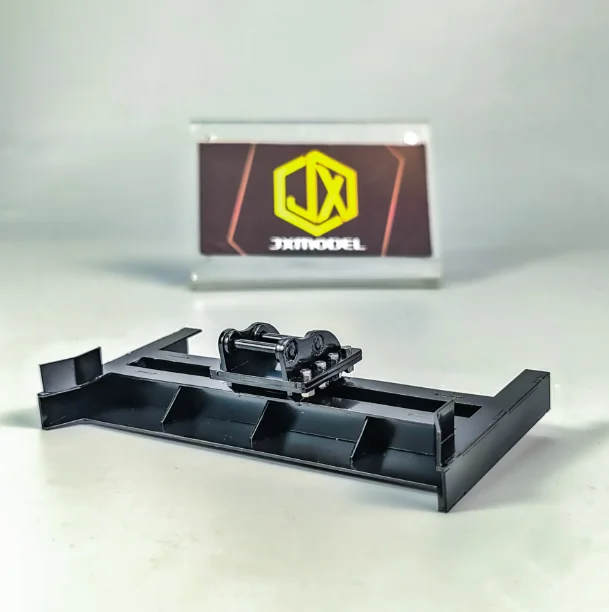

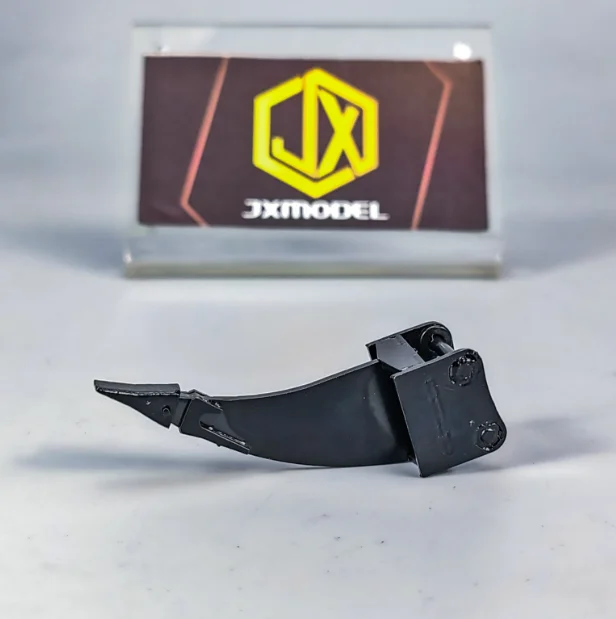

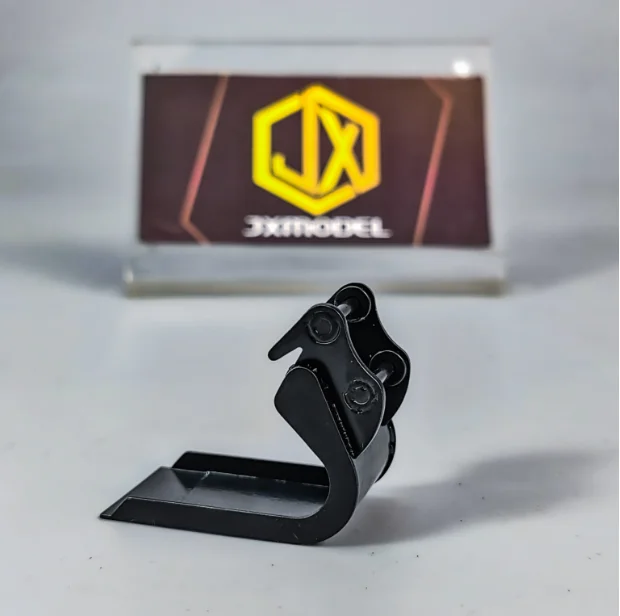

Attachments:
